Link Pro Connect Box

Link Pro Connect Box

5MP HD Mini IR Color-Low-Light Fixed Bullet Network Camera - Black4MP WDR IR Eyeball Network Camera

IV-LINKPRO-GCB01

SKU: IV-LINKPRO-GCB01 Categories: Connect Box, Others

Supports mechanical chime and wireless chime.
Supports connection to an IDView NVR for live view, playback, and alarm search.
Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to APP and NVR.
3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.
Supports noise suppression.
Supports true HDR and DWDR, capturing clearer images in backlit scenes.
Supports calling the app, allows you to answer visitor calls anytime, anywhere using the app.
Supports Sub-1GHz wireless chime.
Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) and Wi-Fi 6, faster video streaming and real-time monitoring.
Supports network connection through Bluetooth, quick and simple.
Built-in 8 GB eMMC storage, no extra storage costs necessary.

Description

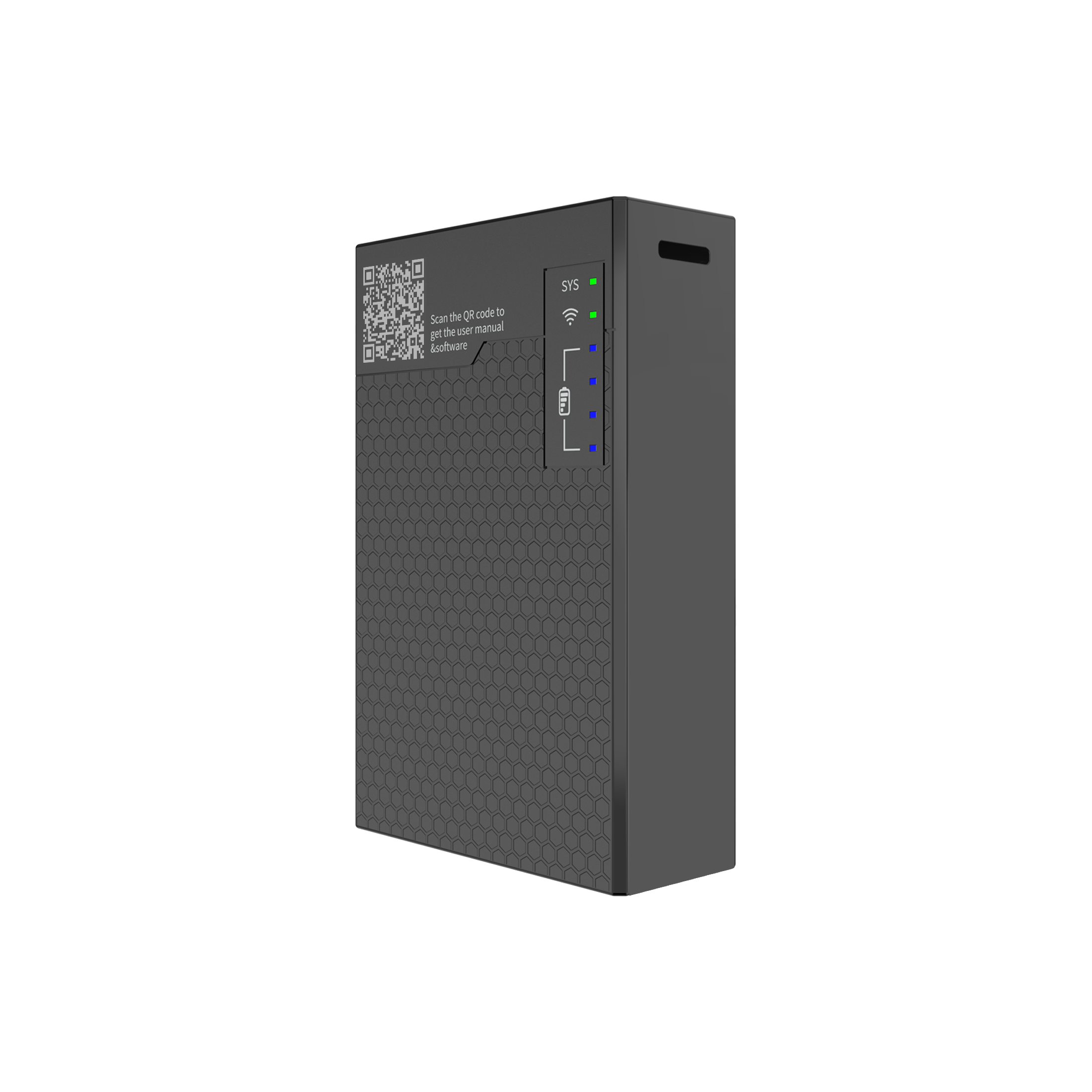

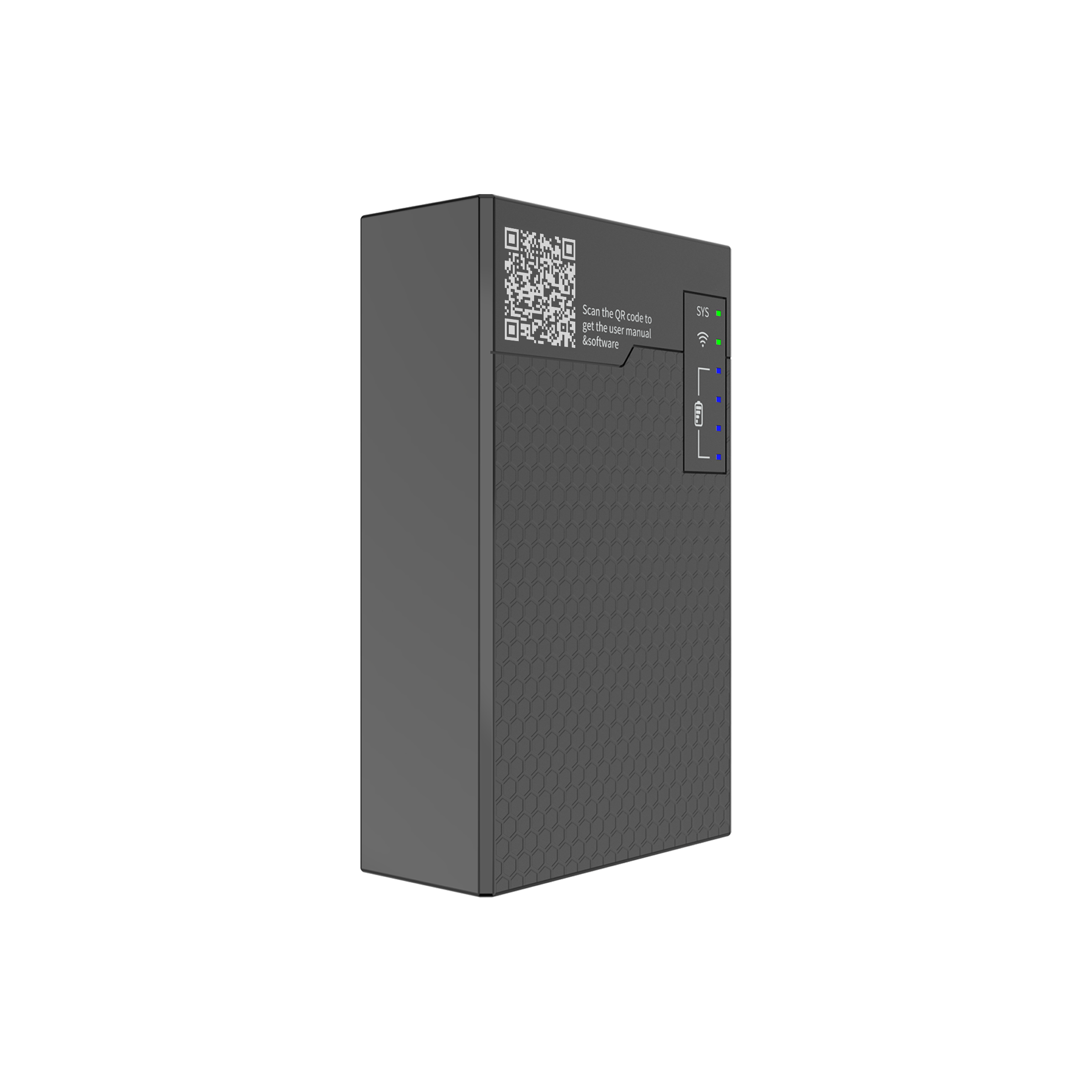

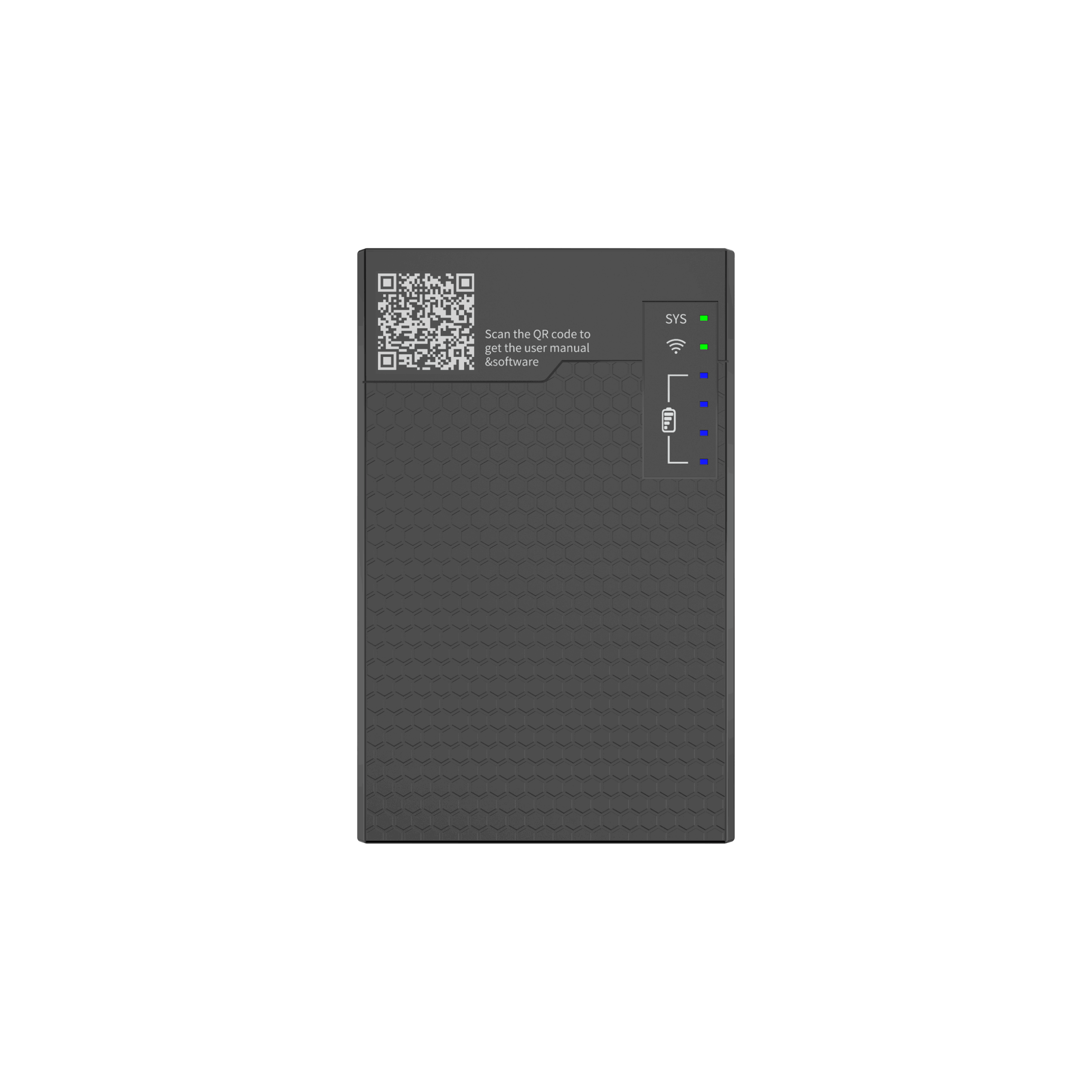

The Link Pro Connect Box is a versatile and essential tool designed to simplify the installation, testing, and maintenance of IP cameras. This compact device connects directly to your smartphone via the app, allowing you to easily access live camera views and make configuration adjustments using the built-in Wi-Fi hotspot. Whether you’re a professional installer or a technician, the Link Pro Connect Box offers the flexibility to manage and troubleshoot camera setups on the go.

Key features include…

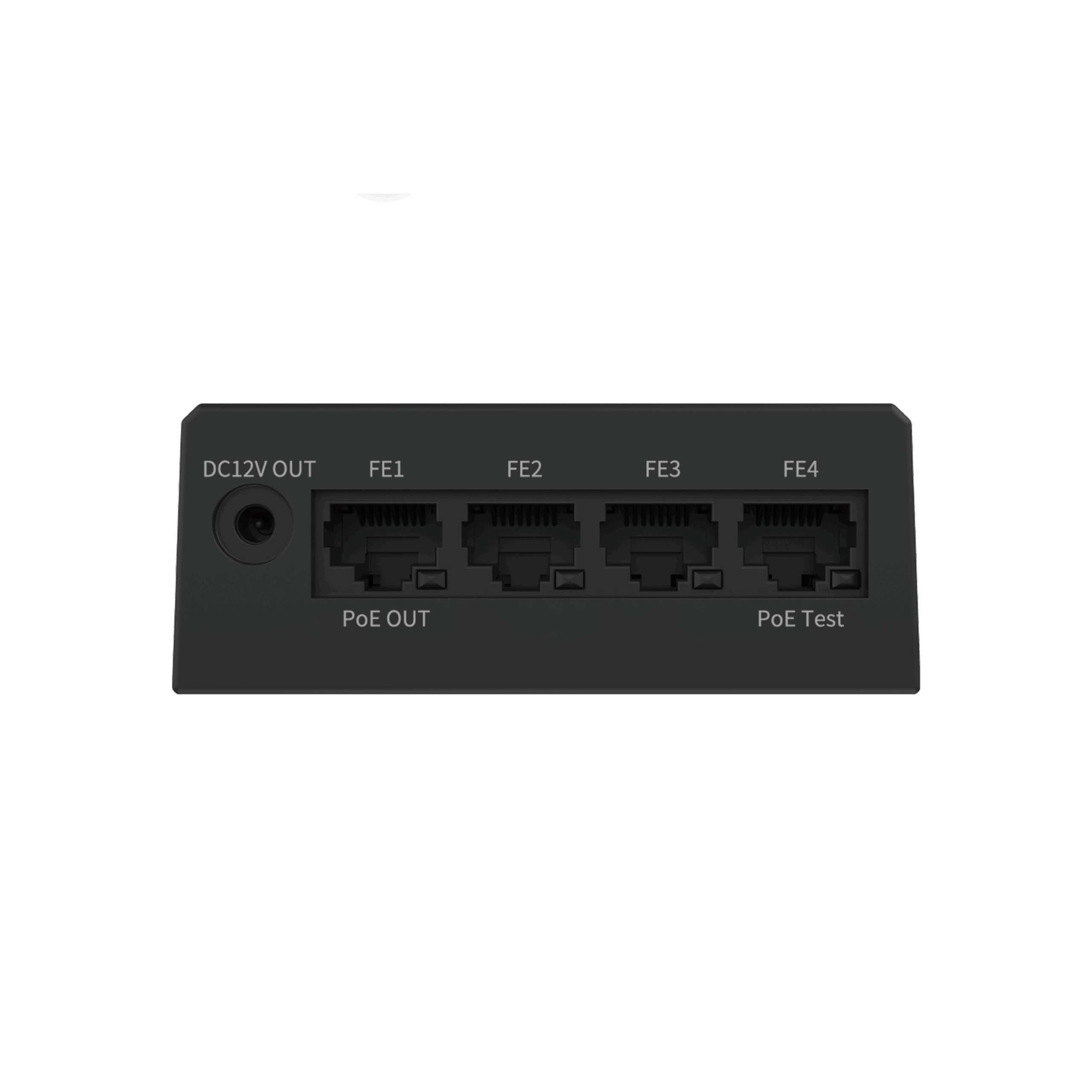

Four RJ45 Ethernet ports, one of which supports PoE (Power over Ethernet) to power your cameras directly from the device
Voltage testing capabilities
Temporary power supply options for non-PoE cameras using its 12V DC output
Built-in lithium-ion battery for extended operational time

This multi-functional tool is a must-have for any IP camera setup, offering seamless integration with IDView’s product ecosystem and ensuring that your security installations are both efficient and effective.

Model	IV-LINKPRO-GCB01
Interface
Network	4 × RJ45 10 M/100 M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test
Voltage Test	1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range： 1V~56V)
Network
Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n)
Structure / Environment
Battery Capacity	18650 lithium battery, 7500 mAH

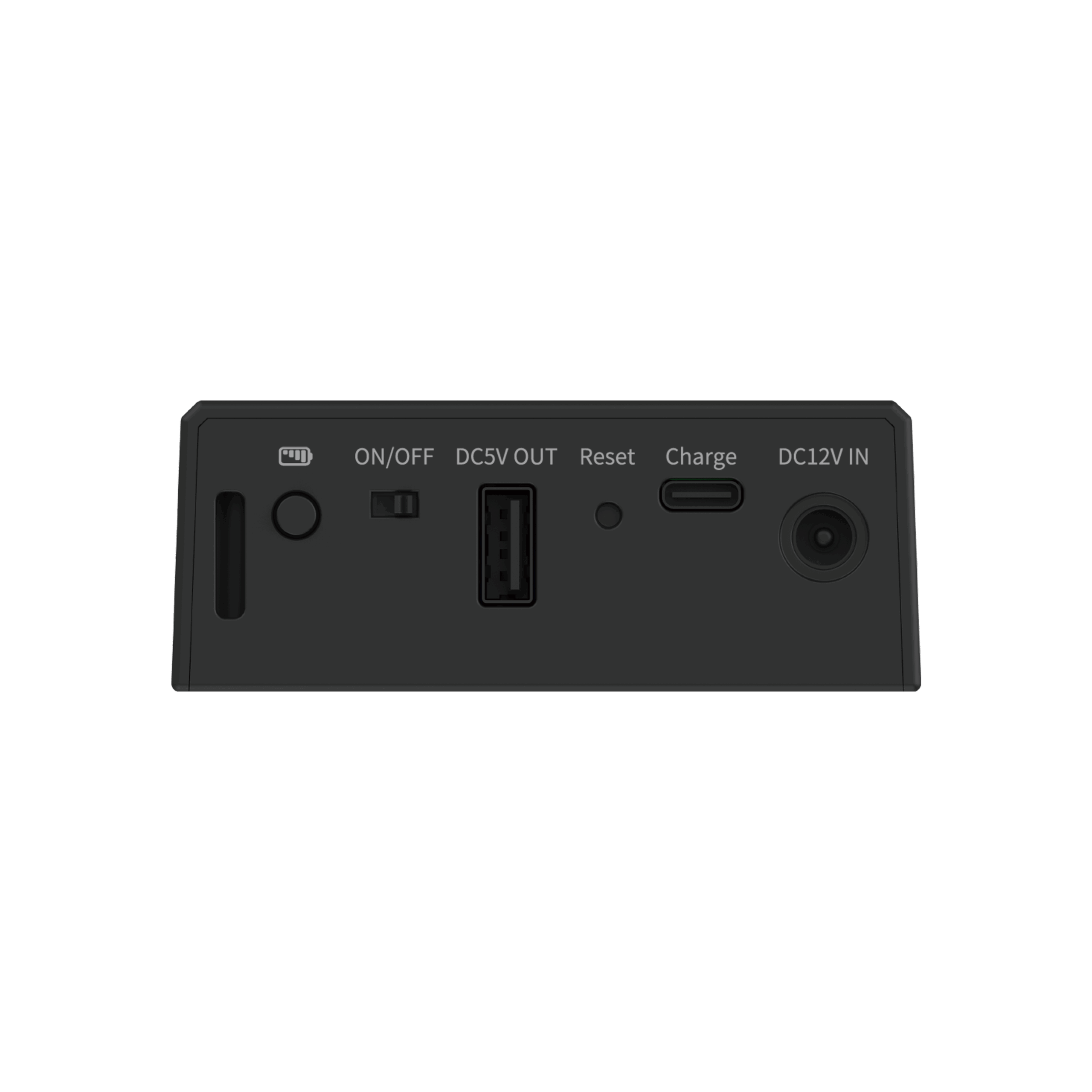

Power Input	1 × DC 5 V/2 A max, type-c
Power Output	1 × DC 12 V/1 A output; 1 × DC 5 V/1 A output, type-A
General
LED Indicator	System indicator, WiFi indicator, Battery indicator
Dimensions	130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H)
Working Environment	-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support
