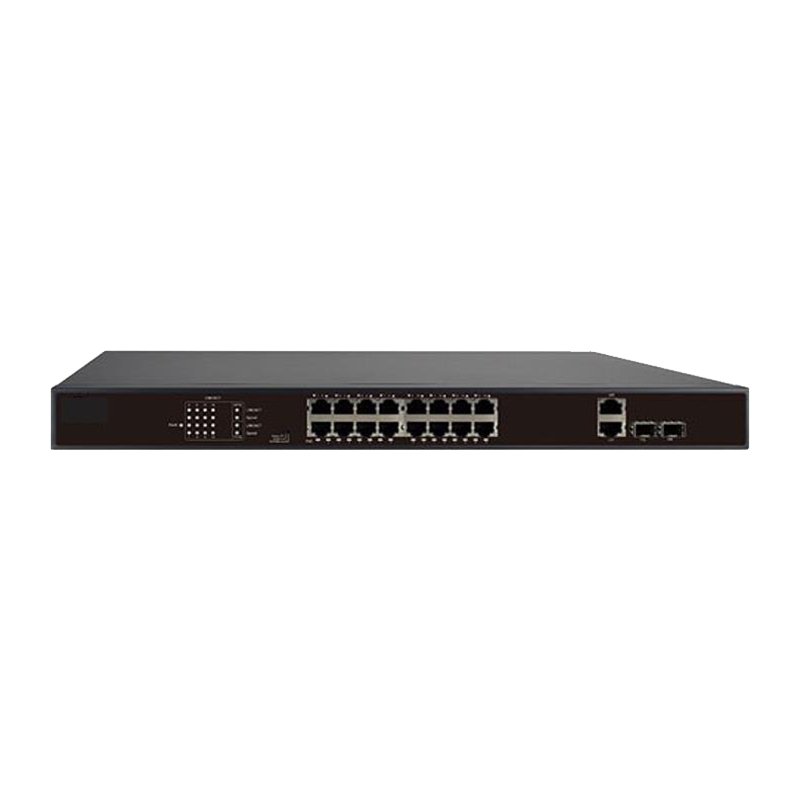

16-Port POE Switch

16-Port POE Switch

IV-NT16POE-UN

SKU: IV-NT16POE-UN Category:

  • Multiple working modes to address your business needs: Normal, Secure, and Surveillance
  • Support port traffic control
  • Support for secure mode, all downlink ports can communicate only with uplink ports
  • Up to 250m transmission distance on surveillance mode
  • Support buffer optimization
  • All-metal housing, safe and reliable

Description

IV-NT16POE-UN is a Gigabit uplink Unmanaged Switch which provides you with a high-performance, low-cost, easy-to use a seamless and standard upgrades to boost your old network to 1000Mbps. Increase the speed of your network server and backbone connections, making Gigabit connection to a server or uplink a network necessarily.

Its PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PD).

The electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as AP, IP Cameras or IP Phones, etc.

Ports 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity 7.2Gbps
Model Description
Forwarding performance 5.36Mpps
Packet Buffer 4Mbit
MAC 16K
Dimensions (W×D×H) 440mm x 207mm x 45mm(17.3″×8.1″×1.8″)
Weight <4.2kg
Power supply AC: 100-240V, 50/60Hz
PoE 802.3at/af
Max. PoE Power Max capacity: 250W

Max capacity for single port: 30W

Switch Power 270W
Surge Protection Common mode ±6KV Differential mode ±4KV
Electrostatic standard Common mode ±6KV Differential mode ±8KV
Cooling Fans 2
Mean Time Between Failure(MTBF) >50000 hours
Operating temperature 0°C-40°C (32°F-104°F)
Operating humidity 10%~90% (noncondensing)
Storage humidity 5%~90% (noncondensing)
Indicator PWR: Steady on: AC input is normal Off No AC input
PoE: Off: No PoE power supply

Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal

LINK/ACT: Off: No link

Steady: Linked at 10/100Mbps Flashing: Transmitting data

Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps
Working Mode Default(Normal mode): All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports.

EXTEND(Surveillance mode): Transmission distance up to 250 meters ,also downlink ports can communicate only with uplink ports.

Datasheet of IV-NT16POE-UN
