550W/960W Solar Power System

4G Solar-powered ANPR CameraPole Mount with Stainless Steel Straps for Solar-powered Camera

IV-SPK55/96

SKU: IV-SPK55/96 Category:

  • Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, and invalid status
  • Support setting the buzzer hibernate time, can avoid false alarm in the fixed time
  • Detection types including vape, smoke, TVOC, temperature, humidity, PM parameter and motion
  • Measures vibration to detect acts of vandalism or tampering
  • Support anti-water vapor disturbance & other gas interference, and the interference information will be reported
  • Support OTA remote upgrade to make the upgrade more convenient
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers

Description

555W/962W Solar Power System – Applicable Model: Solar-powered Camera IV-SPLPR111-6(16)MM

  • Up to 962Wh Battery & 2*100W Solar Panel
  • Up to 17-Day Battery Life with Continuous Recording
  • Weight: 13/16kg
  • Dimension: 765*630*69mm(825*690*105mm with Package)

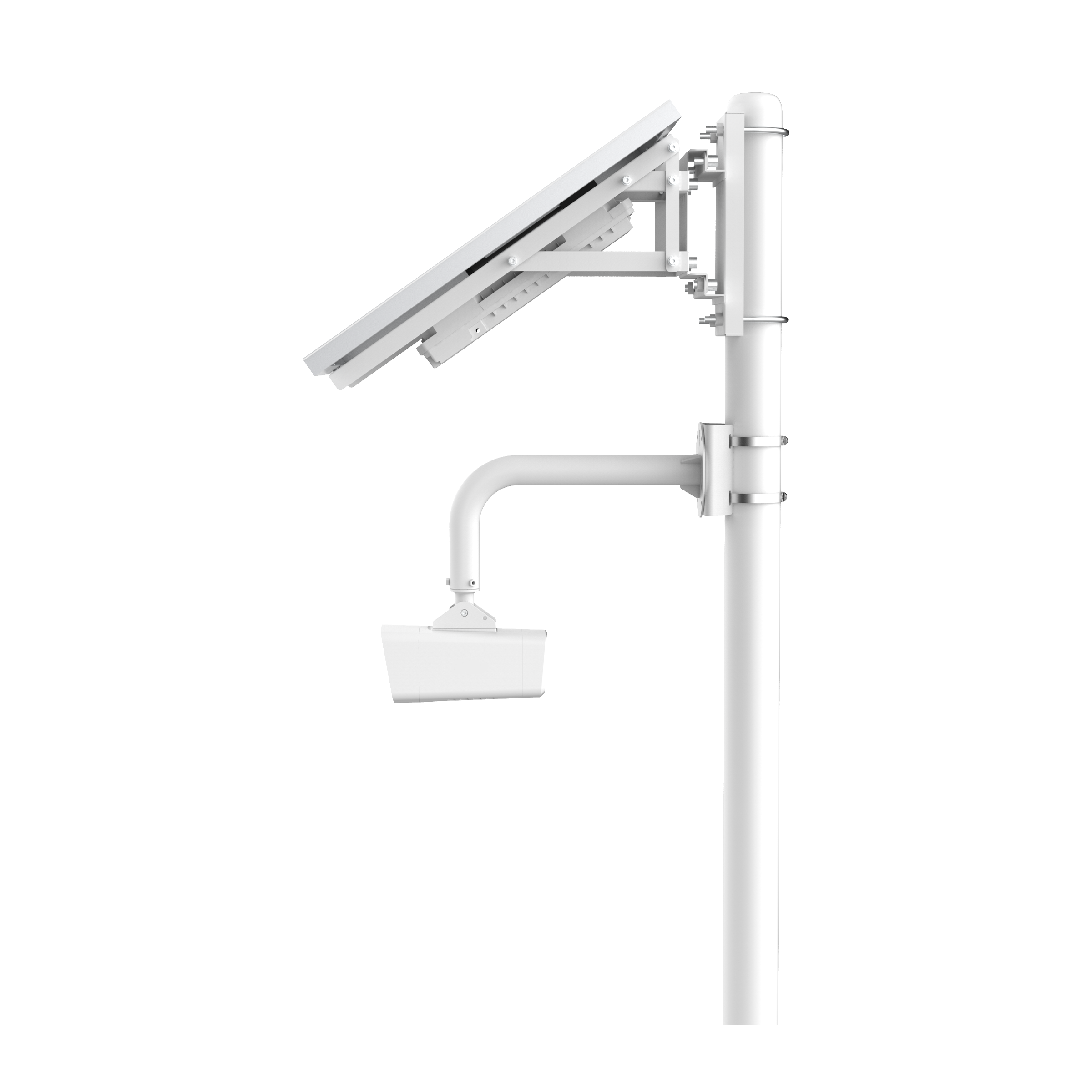

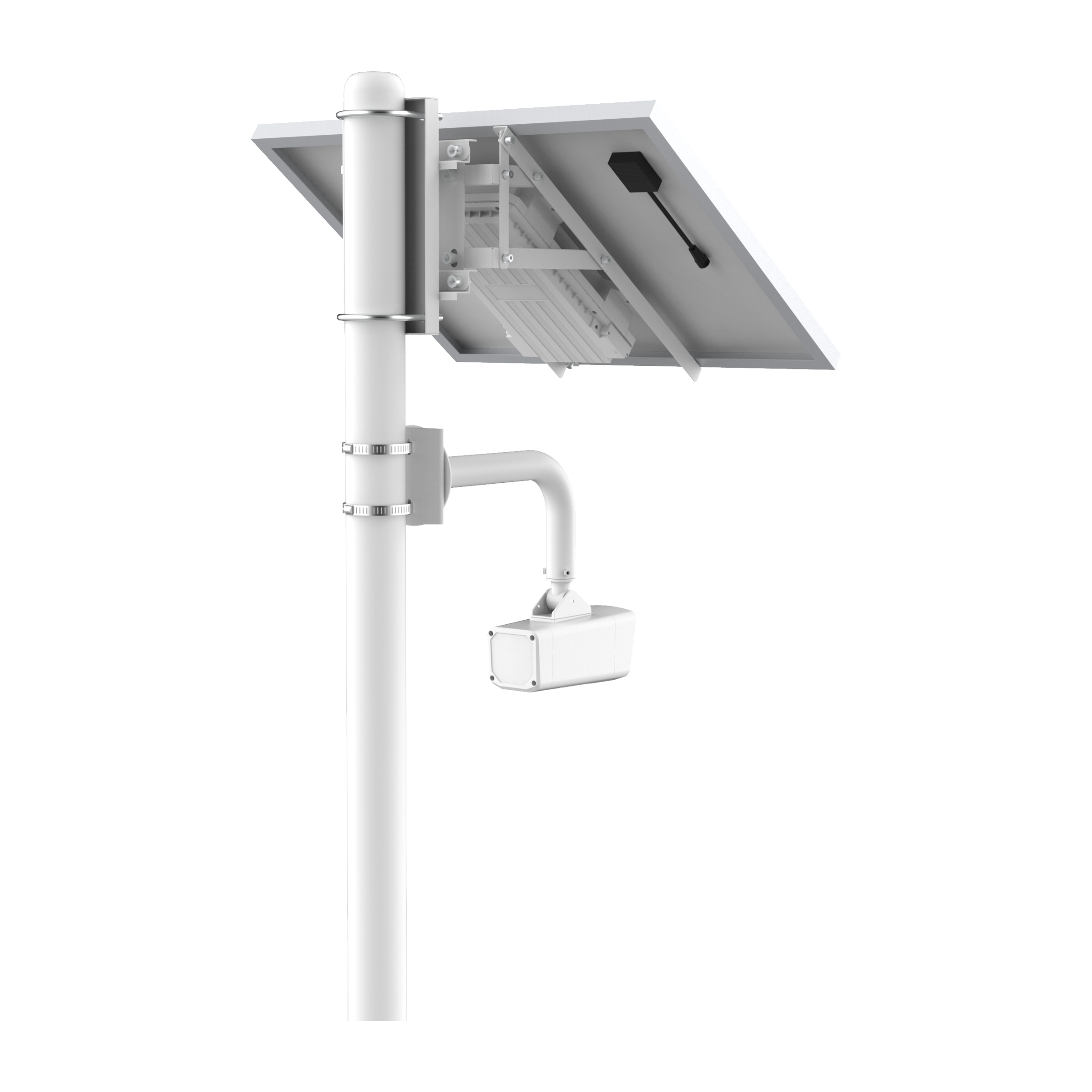

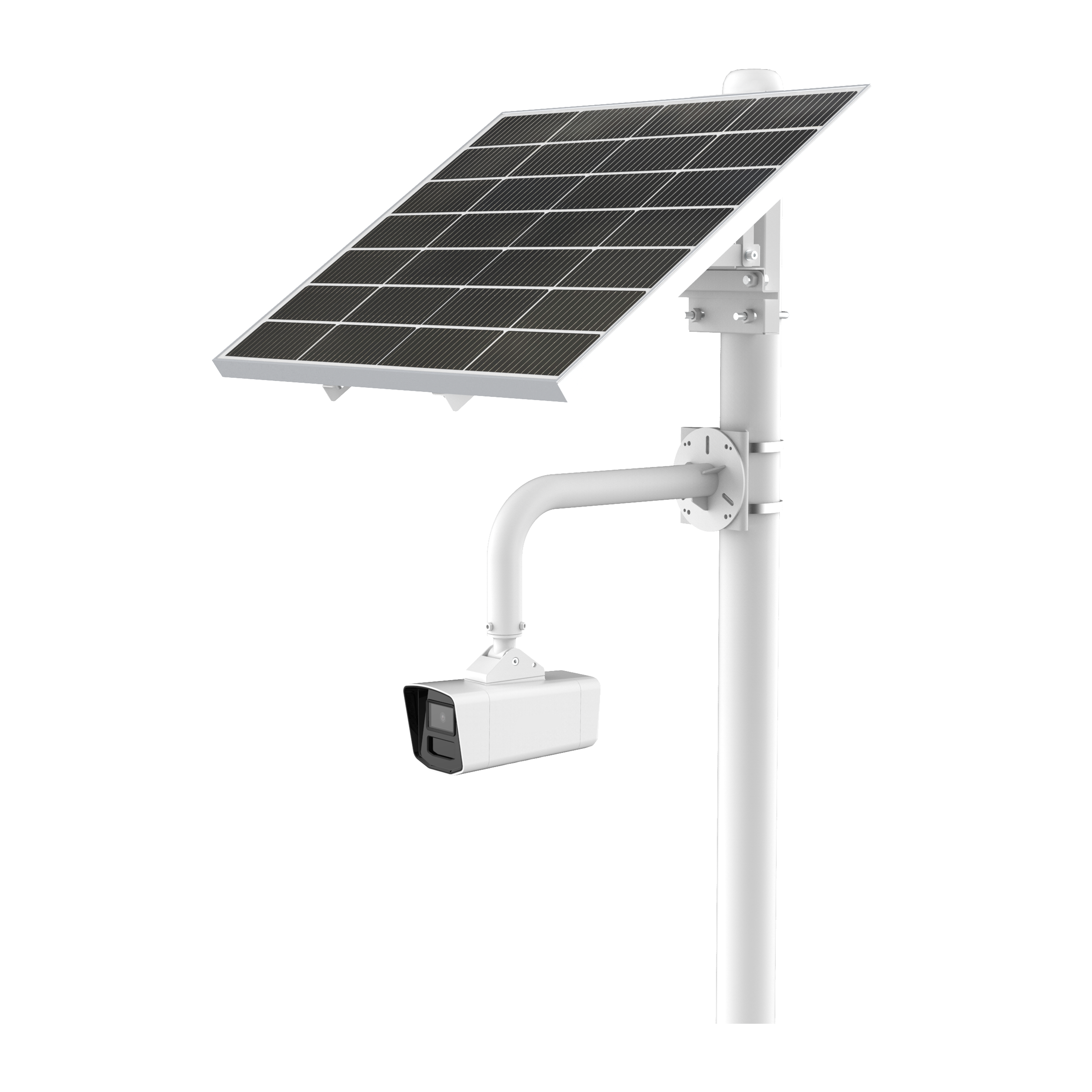

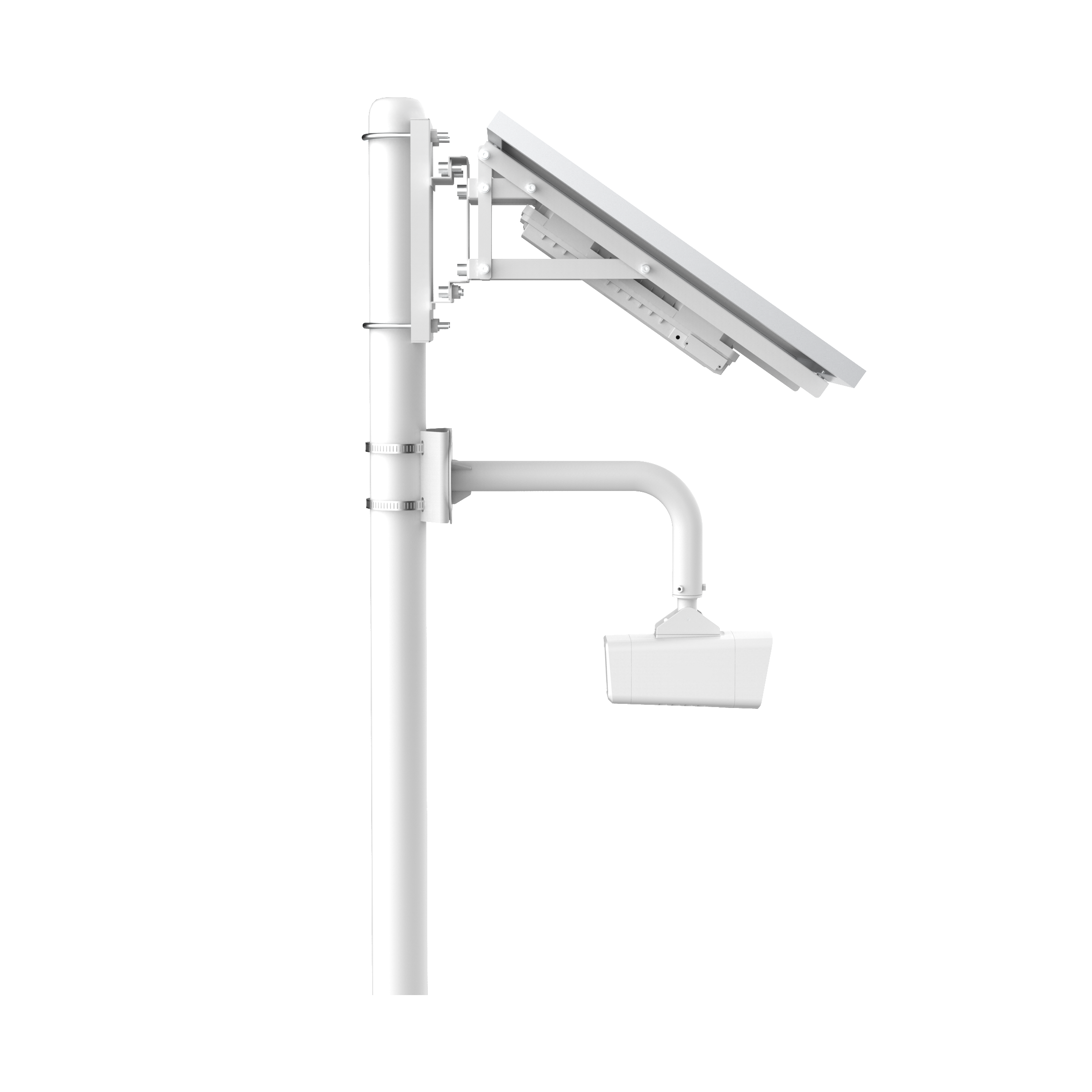

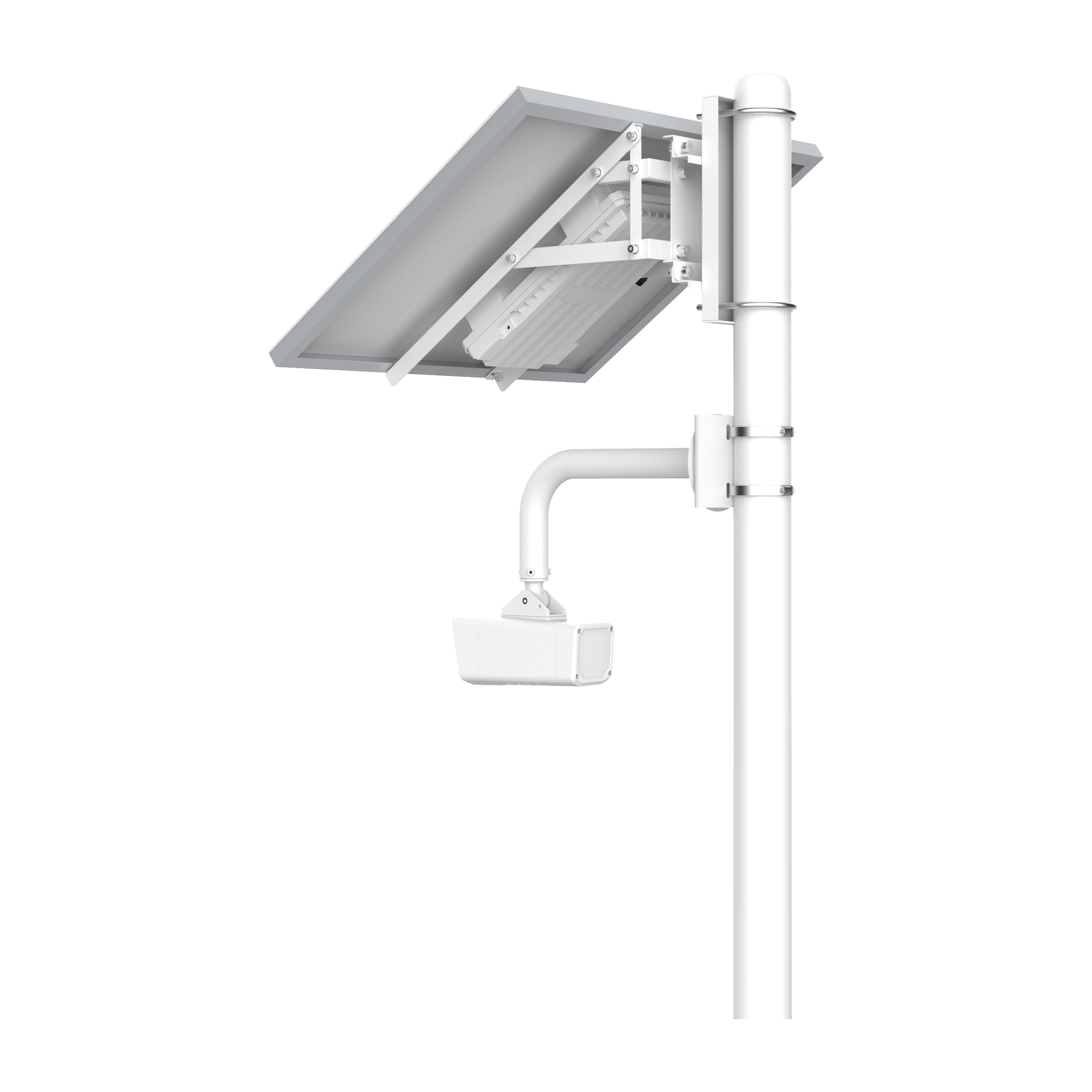

  • Installation Environment: Generating and providing electricity for cameras, equipped with wall-mount and pole-mount brackets by default
Solar Power System
Name IV-SPK55/96 Solar Power System
Solar Panel Modules in Kit Default: 1 units;
Optional: 2 units
Charge
PV Power 100W
PV Input Voltage 18V
Material Monocrystalline silicon
Energy Storage
Battery Type NMC
Battery Capacity 50AH/90AH
Total Energy 555Wh/962Wh
Battery Life IV-SPK55: 9 days (without data transmission), 6 days (with data transmission)

IV-SPK96:17 days (without data transmission), 11 days (with data transmission)
Deep Cycles ＞1000
Nominal Voltage 11.1V
Discharge
Output Voltage 9~12.6V DC
Maximum Output Current 10A
Discharge Depth 95%DOD
Function
Battery Heating Charging current > 2A and lower than -5℃ turns on
Protection Type Overcurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range 0℃~60℃
Discharging Temperature Range -20℃~65℃
Status Indicator LED (charging status, battery status, output status)
Interface
Communication RS485
Output Method M12 5-pin Connector
Output Line Length 1.5m
Supported Cables Dual Device Power Splitter Cable
Bridge Data & Power Cable (RS485 & DC Output)
Main Power Cable
General Parameters
Waterproof IP66
Humidity Range 4-100% (no condensation)
Cooling Method Natural Heat Dissipation
Hazardous Material Classification 9
Shell Material Galvanized Steel + Plastic
Fixed Way Hanging Rod / Wall Mounting
Product Dimensions IV-SPK55: 765*630*69 mm, 825*690*105 mm (with Package)

IV-SPK96: 765*630*112.5 mm, 825*690*140 mm (with Package)
Weight 13kg/16kg
Warranty 2 years
Certificate UN38.3/MSDS/CE/ROHS

Datasheet of IV-SPK
