4G Solar-powered Traffic Sensing Camera

Wall Mount for Solar-powered Series Camera20MP Super Startlight IR 4-Directional Panoramic Dome Network Camera

IV-SCLPR211-6(16)MM

SKU: IV-SCLPR211-6(16)MM Categories: 4G Sensing Camera, 4G Solar-powered Traffic Sensing Camera, IP Cameras, Others

Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, and invalid status
Support setting the buzzer hibernate time, can avoid false alarm in the fixed time
Detection types including vape, smoke, TVOC, temperature, humidity, PM parameter and motion
Measures vibration to detect acts of vandalism or tampering
Support anti-water vapor disturbance & other gas interference, and the interference information will be reported
Support OTA remote upgrade to make the upgrade more convenient
Built-in NFC for easy configuration
Compatible with standard LoRaWAN® gateways and network servers

Description

Easily Deploy, Sharply Detect

Radar Triggered Vehicle Capture
AI Algorithm for Accurate Focus
Low Consumption Technology

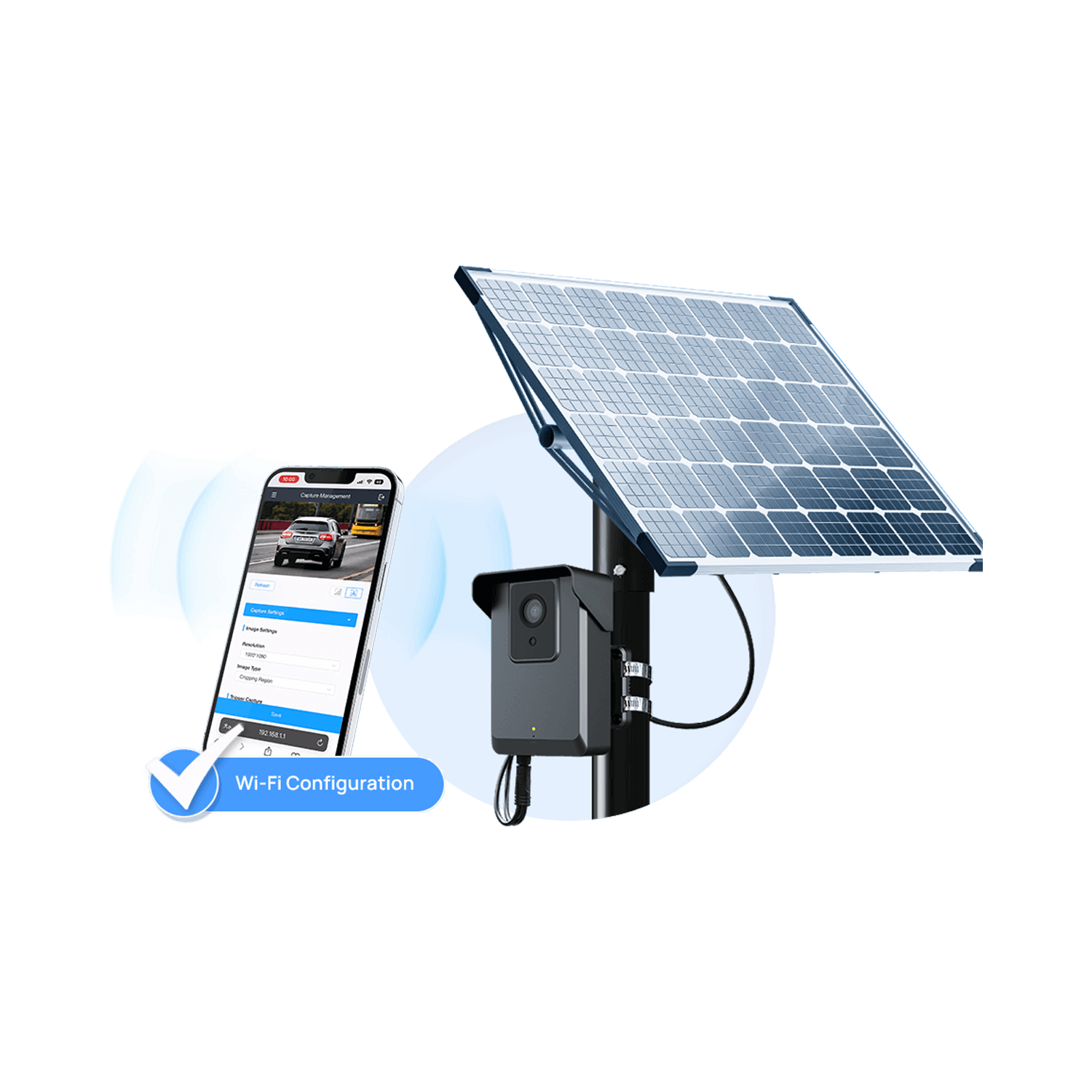

Solar-powered for Constant Use
4G LTE for Wireless Data Transmission
MQTT & HTTP Protocol for Seamless Integration

Capture Performance
Capture Rate	Up to 98%
Optimal Capture Distance	6m (With 6mm lens) 15m~20m (With 16mm lens)
Capture Range	3~15m (With 6mm lens) 10~25m (With 16mm lens)
Nighttime Illumination Distance	Up to 15m (With 6mm lens) Up to 25m (With 16mm lens)
Coverage	2 lanes (8m)
Capture Speed	Be recommended to use when the vehicle speed <30km/h (With 6mm lens); Be recommended to use when the vehicle speed <70km/h (With 16mm lens)
Wireless Network
WLAN	802.11n/802.11g
Cellular	4G LTE NA: B2/B4/B5/B12/B13/B25/B26 EU: B1/B3/B7/B8/B20/B28 AU: B1/B2/B3/B4/B5/B7/B8/B28/B66
SIM Card	Nano SIM
Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Day/Night Mode	Day/Night/Auto
IR Wave Length	850nm (Default); 740nm (Optional)
Lens
Lens	16mm/6mm
Field of View	H19.4° /D22.2° /V11° (16mm) H52.8°/D60.4°/V29.7° (6mm)
Max. Resolution	1920×1080
Image Setting	Brightness/Contrast/Saturation/Sharpness
General
GPS	Built-in High-accuracy GPS Module
Radar Working Frequency	24GHz
Protocol	MQTT/HTTP
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Solar Power	Power: ≥35W OCV: <22V Connector: MC4
Direct & Battery Power	Power Supply: USB Type-C Battery: 7.2V, 6400mAh, 46.08Wh Operational Temperature: Charge: -20℃ ~45℃; Discharge: -20℃ ~60℃ Battery Life: The power is 70% after 500 times of accumulative charging and discharging
Power Consumption	288mW Normal (Detection Status) 1.166W Normal (Capture Status) 5.9W MAX (Night Capture Status)
Weather Proof	IP66
Weight	1040g 212g (Battery Weight)
Rain Cover Movement Distance	10mm
Dimensions	175mmX111mmX63.2mm (Without Rain Cover)
Warranty	2 Years
Certifications
EMC	CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM (AS/NZS CISPR 32)
Safety	CE-LVD (EN IEC 62368-1), RCM (AS/NZS 62368.1)
RF	CE-RED (EN 301908-1, EN 301908-2, EN 301908-13, EN 301 511, EN 300 328, EN 303 413, EN 300 440, EN301489-1, EN301489-3, EN301489-17, EN301489-19, EN301489-52,EN 62133) FCC (Part 15.247) RCM (AS/NZS 4268, AS/CA S042.1, AS/CA S042.4)
Environment	CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
